Via Models

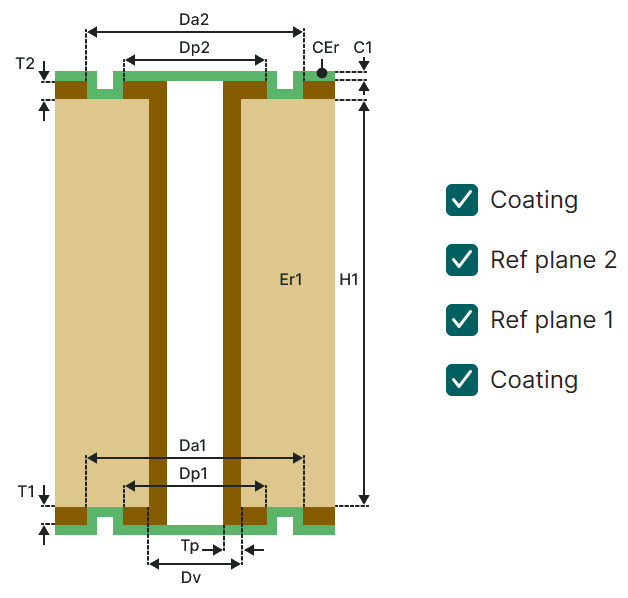

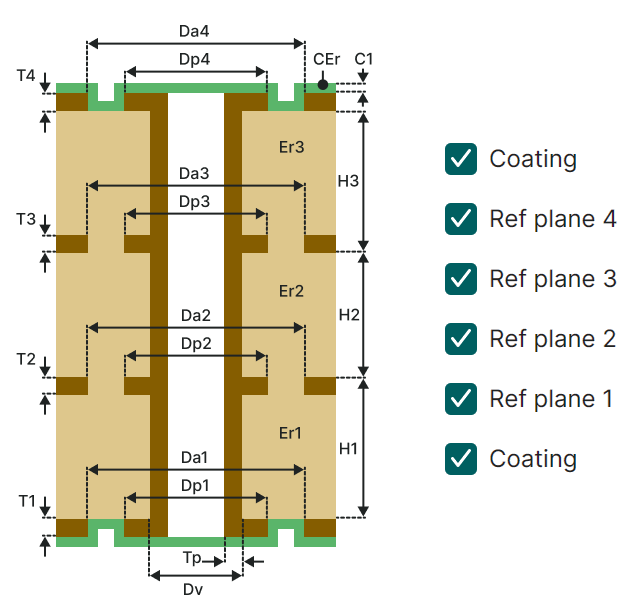

SimPCB Lite supports via models for two-layer and four-layer stackups. You can customize the via models by enabling or disabling the Coating and Ref plane 1...4 checkboxes in the preview area.
